Hengxing series HX3.1/D**

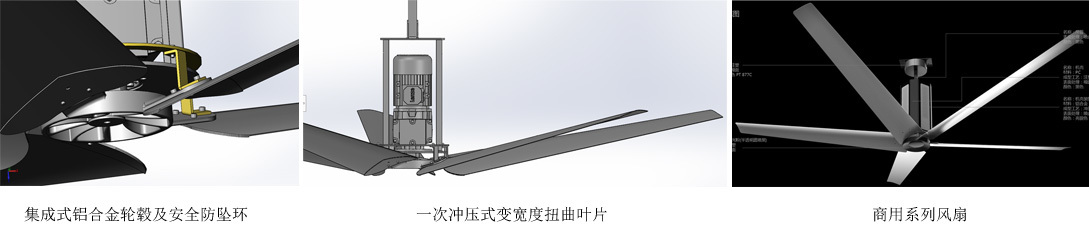

The circumference of the wheel hub is composed of four sets of hexagonal steel sliding cavities. Each group of sliding cavities has two sliding holes embedded with sliding blocks of the same shape. The front of both sliders are concave in shape. The front end of the leaf stem is equipped with a protruding lock block, which exactly matches the concave shape of the two sliding blocks. Two sliders are machined with a through hole in the center of the front end of the blade handle, and the fastening bolt runs through it to lock and fasten the three components together.

Category:

  • Describe
    • Commodity name: Hengxing series HX3.1/D**
    • Commodity ID: 1125742536518422528

    The circumference of the wheel hub is composed of four sets of hexagonal steel sliding cavities. Each group of sliding cavities has two sliding holes embedded with sliding blocks of the same shape. The front of both sliders are concave in shape. The front end of the leaf stem is equipped with a protruding lock block, which exactly matches the concave shape of the two sliding blocks. Two sliders are machined with a through hole in the center of the front end of the blade handle, and the fastening bolt runs through it to lock and fasten the three components together.

    Product specifications and parameters

    Model/Parameters

    Fan diameter

    Maximum rotational speed

    Motor power

    Power parameters

    Estimate the airflow

    Estimate the coverage area

    Product weight

    HK3.1/D10

    3100 mm

    100 rpm

    0.37kw

    220 1Ph. 50/60 Hz.

    2600

    260

    32 kg

    HK3.1/D9

    2800 mm

    120 rpm

    2300

    222

    31 kg

    HK3.1/D8

    2500 mm

    140 rpm

    1900

    180

    30 kg



    Product configuration and features

    Configuration details/model

    HX3.1/D10

    HX3.1/D9

    HX3.1/D8

    Motor

    German NORD motor, Lenze motor optional

    Control section

    ABS injection control box, HNT customized speed governor, blue light display with touch function buttons. Forward and reverse. Group control optional, remote control optional.

    Mounting kit and rack

    Lightweight frame, standard I-beam and concrete mounting kits, round tube construction fittings optional. Surface spraying.

    Hub material

    One-piece cast aluminum wheels.

    Hub technology

    Supporting anti-fall self-locking device

    Blade material

    Stamping process single-layer blades, aluminum alloy material, model 5052, aluminum alloy natural color standard, spray color optional

    Number of blades

    5 tablets as standard.

    Blade technology

    Variable section width gradient design, blade windward angle twist design, blade tip upturned design
