Hengyun Series HY1.1/D24-12


Product specifications and parameters: Hengyun 1.1 series parameters/models HY1.1/D24HY1.1/D20HY1.1/D18HY1.1/D16HY1.1/D14HTY1.1/D12 fan diameter 7300mm, 6100mm, 5500mm, 4900mm, 4300mm, 3700mm maximum speed 46rpm, 55rpm, 60rpm, 70rpm, 80rpm, 90rpm motor power 1.5kw1.1kw power supply parameters 204-430V1Ph. -3Ph.50/60Hz. Estimated air volume 124
  • Describe
    • Commodity name: Hengyun Series HY1.1/D24-12
    • Commodity ID: 1125742539395715072

    Product specifications and parameters: Hengyun 1.1 series parameters/models HY1.1/D24HY1.1/D20HY1.1/D18HY1.1/D16HY1.1/D14HTY1.1/D12 fan diameter 7300mm, 6100mm, 5500mm, 4900mm, 4300mm, 3700mm maximum speed 46rpm, 55rpm, 60rpm, 70rpm, 80rpm, 90rpm motor power 1.5kw1.1kw power supply parameters 204-430V1Ph. -3Ph.50/60Hz. Estimated air volume 124

    Product specifications and parameters: Hengyun 1.1 series

    Parameter/Model

    HY1.1/D24

    HY1.1/D20

    HY1.1/D18

    HY1.1/D16

    HY1.1/D14

    HTY1.1/D12

    Fan diameter

    7300 mm

    6100 mm

    5500 mm

    .4900 mm

    4300 mm

    3700 mm

    Maximum rotational speed

    46 rpm

    55 rpm

    60 rpm

    70 rpm

    80 rpm

    90 rpm

    Motor power

    1.5 kw

    1.1 kw

    Power parameters

    204-430 V 1Ph. - 3 Ph. 50 / 60 Hz.

    Estimate the airflow

    12400

    11540

    11160

    10680

    10260

    9830

    Estimate the coverage area

    ≧1400

    ≧1050

    855

    670

    520

    380

    Total weight

    80 kg

    80kg

    78 kg

    78 kg

    66 kg

    65 kg



    Product configuration and features

    Configuration/Model

    HY1.1/D24

    HY1.1/D20

    HY1.1/D18

    HY1.1/D16

    HY1.1/D14

    HY1.1/D12

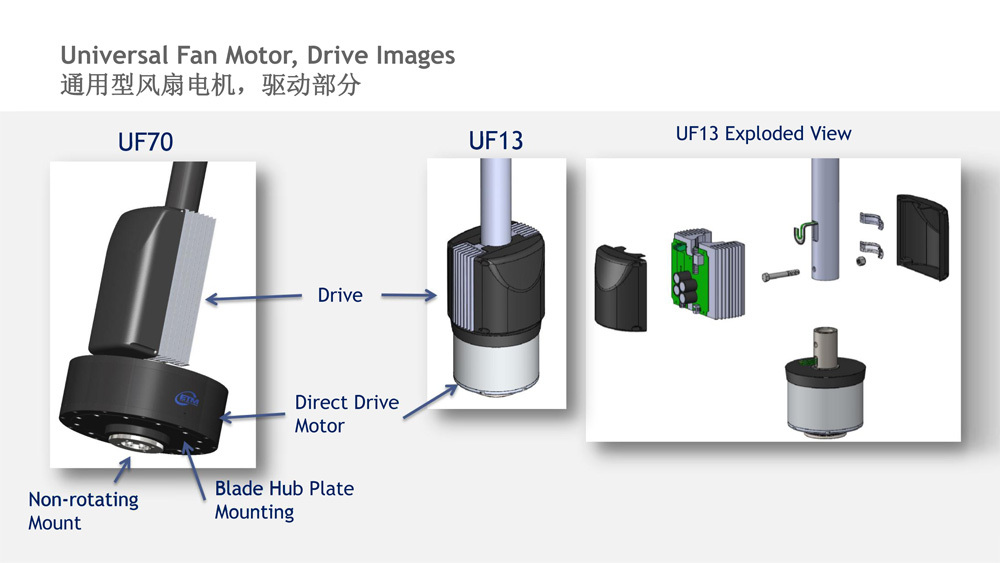

    Geared motor

    American ETM imported permanent magnet brushless direct drive motor

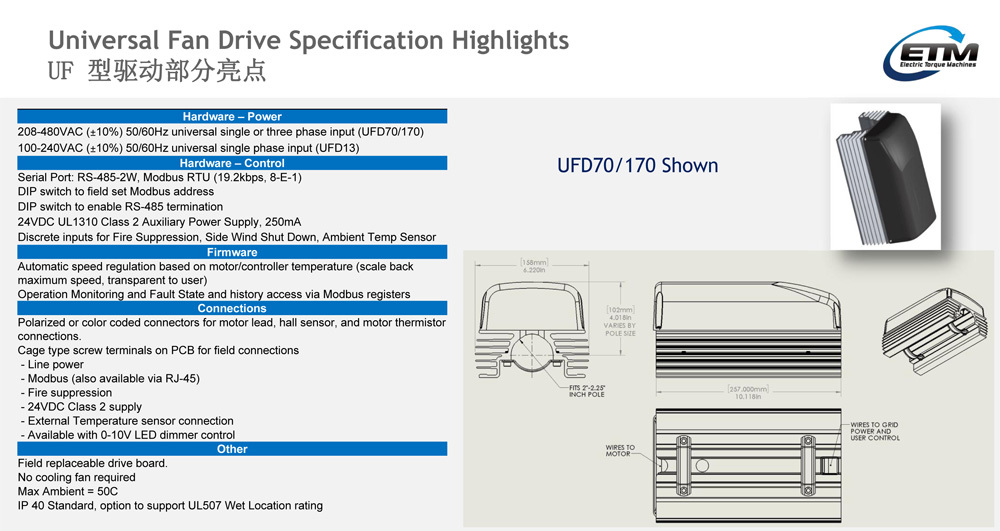

    Control section

    American ETM imported drive and control system, operation panel

    Group control optional, touch screen up to 32 fans per group, forward and reverse, LED light optional.

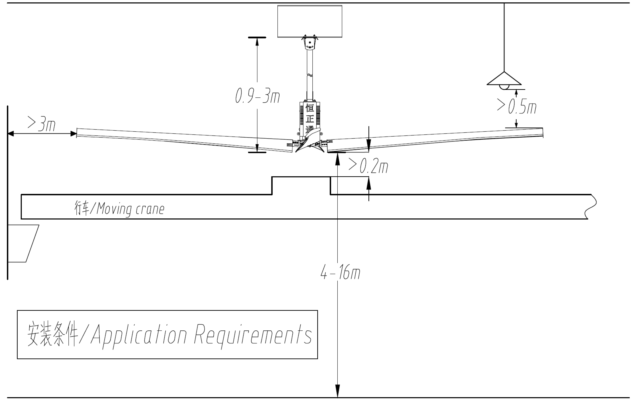

    Rack and mounting kit

    Dedicated racks. Standard I-beam mounting kit, round tube structure / concrete structure kit optional

    Hub material

    A3 steel plate, electroplated surface treatment

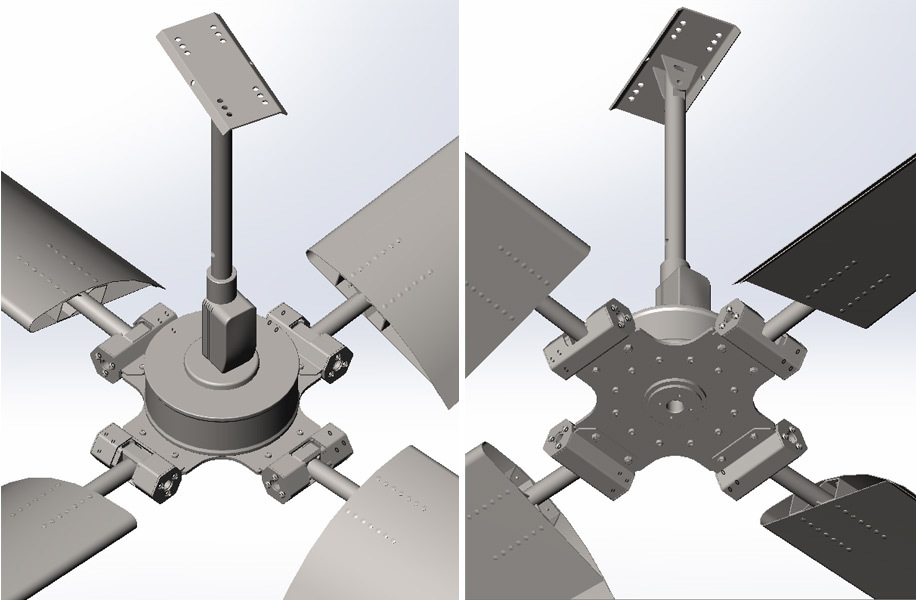

    Hub technology

    Vibration isolation sleeve + slider design, steel wire through the extension rod and motor shaft anti-fall design

    Blade material

    Stamping process aluminum alloy double-layer blades, aluminum model 5052, 1.5mm aluminum sheet, blade color is aluminum alloy natural color, spray color optional.

    Number of blades

    4 blades as standard, 3 blade options available.

    Blade technical configuration

    Convex petiole and concave slider inlay anti-detachment design, variable section width gradient design, blade windward angle twist design, leaf tip upturned design

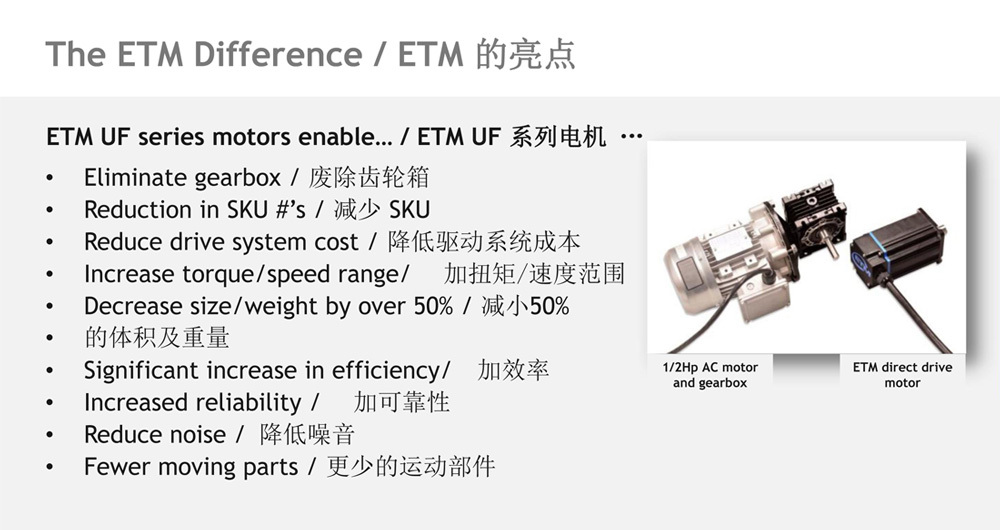

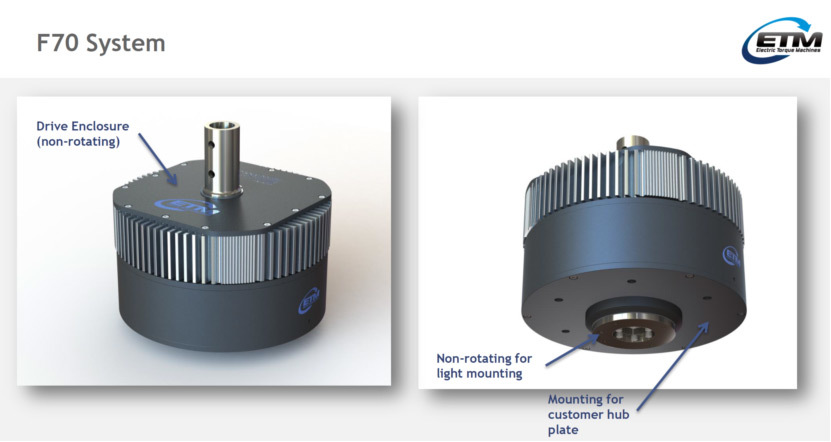

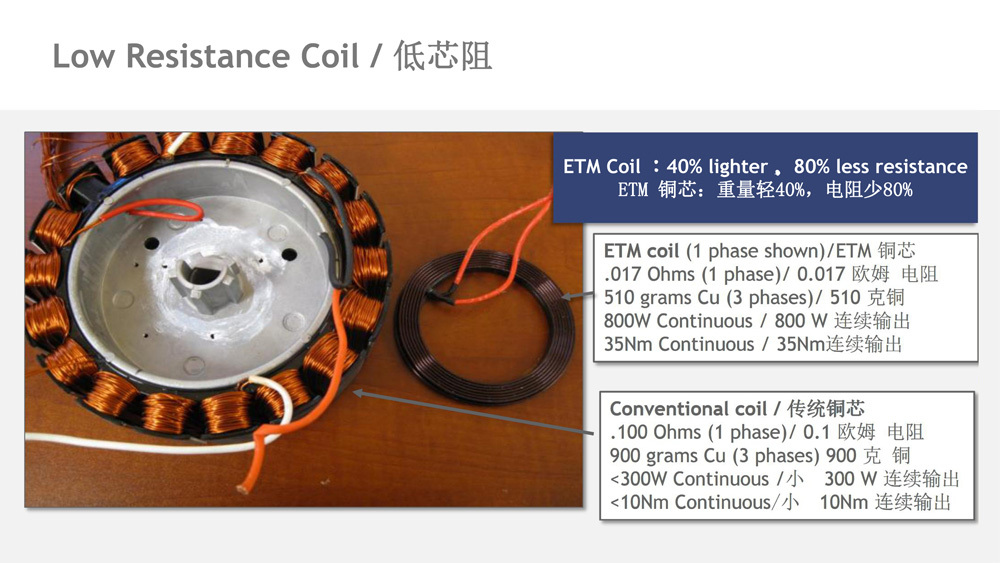

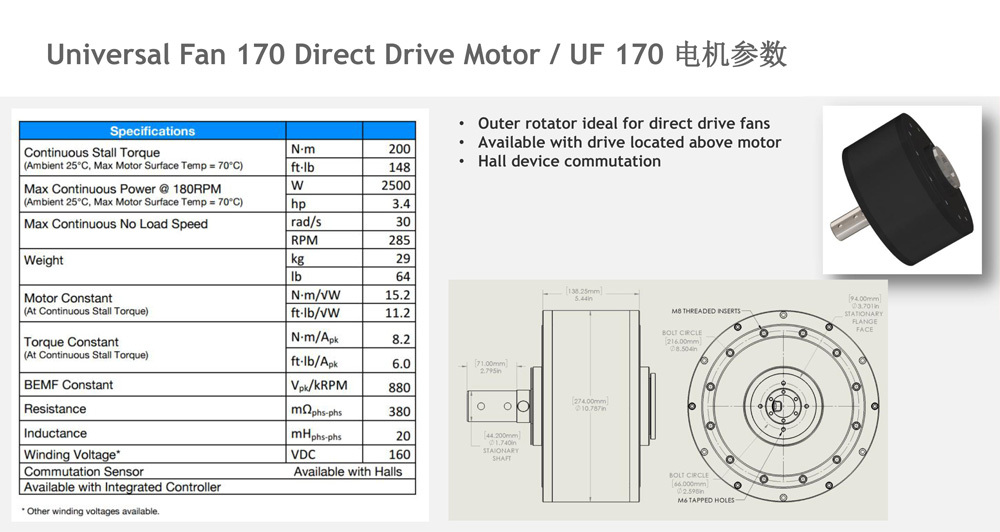

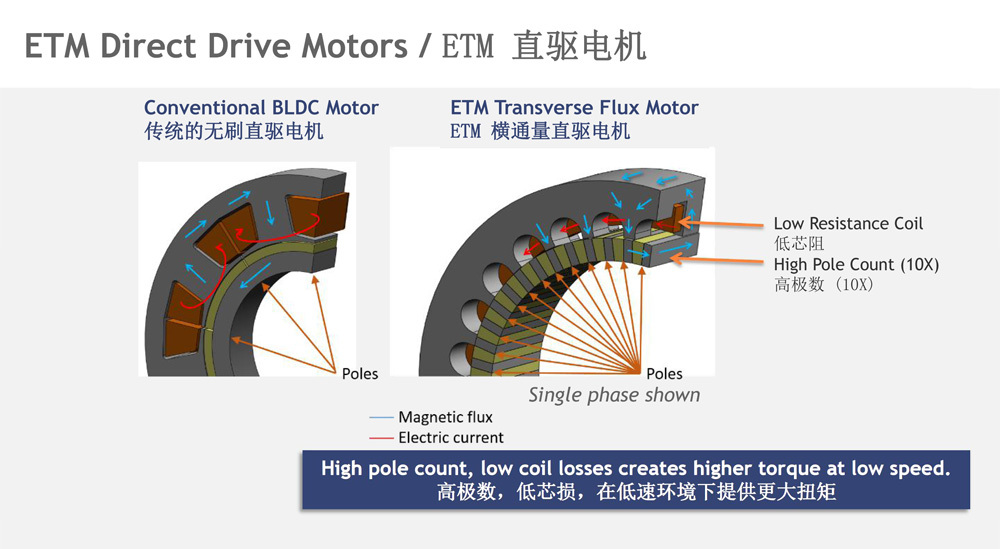

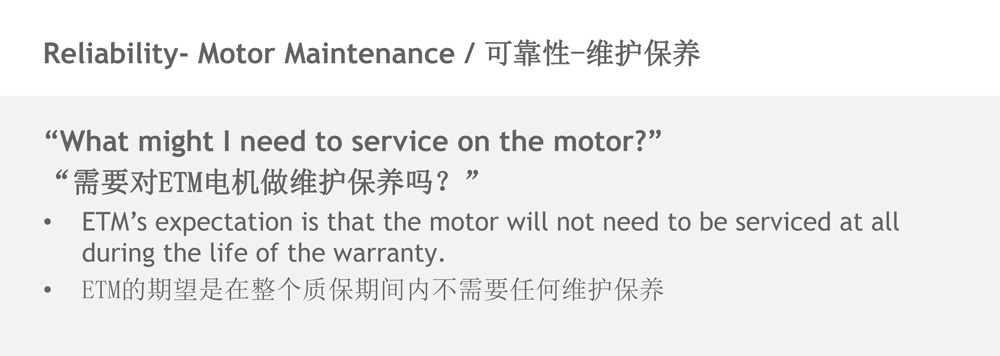

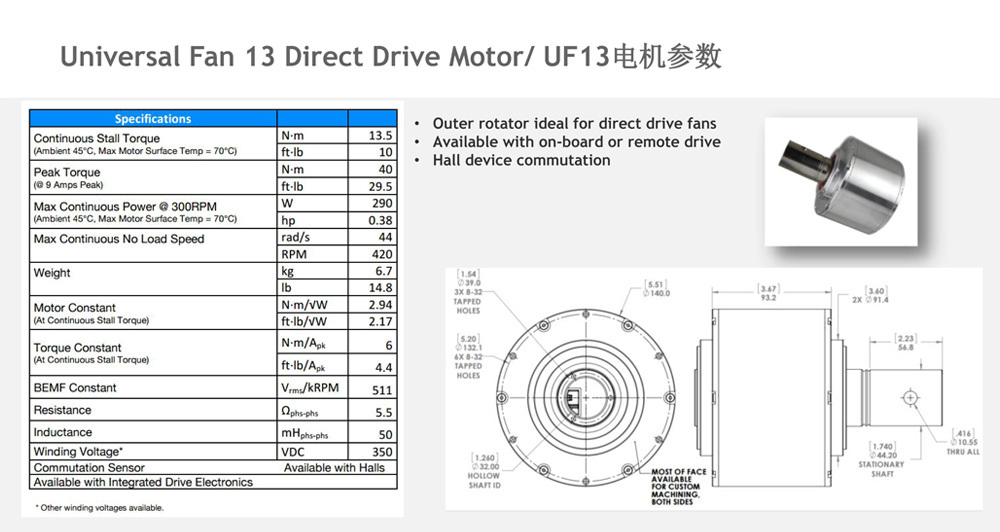

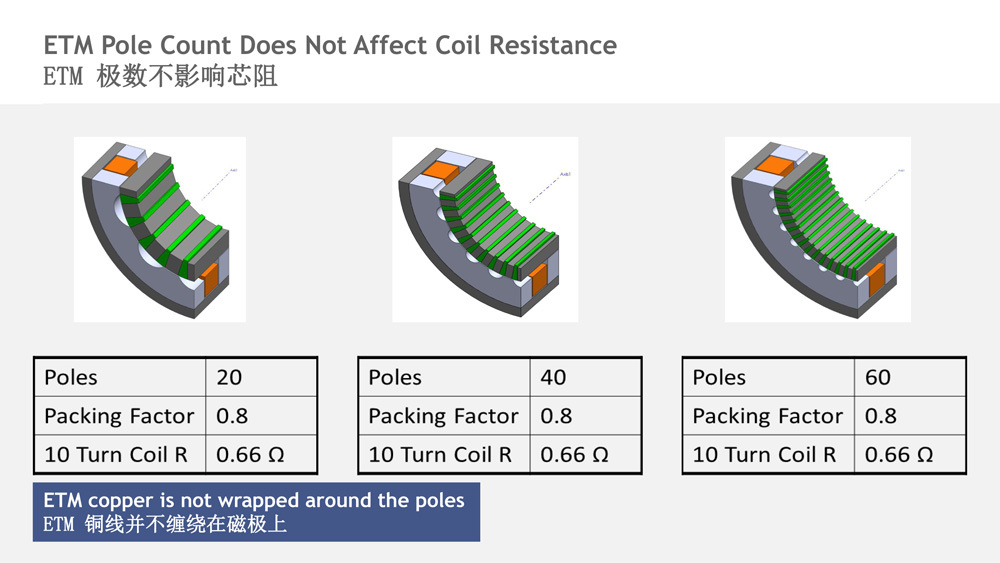

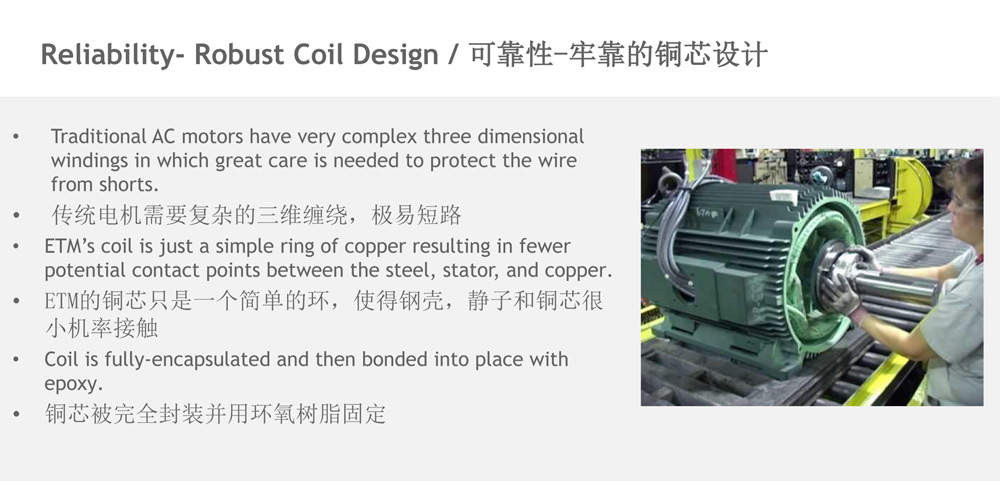

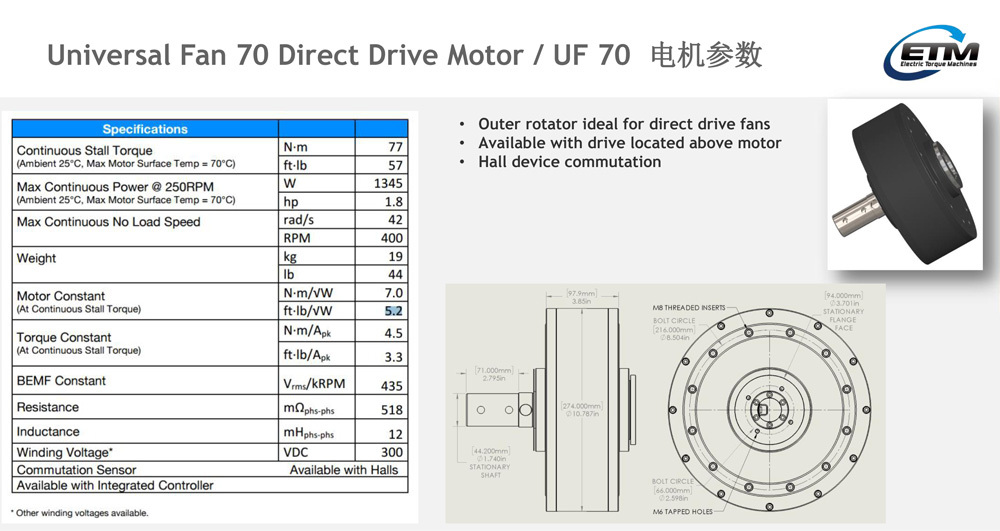

    Technical excellence • Permanent magnet direct drive motor ETM

    The most advanced, mature and reliable permanent magnet direct drive motor technology in the industry

    Hengzhengtong grandly recommends the American ETM permanent magnet direct drive motor to the market!

    ETM Corporation of the United States is the pioneer and leading brand of direct drive motors in the oversized ceiling fan industry, its global market share is the first, the installation and application time is more than 5 years, and there are currently tens of thousands of oversized ceiling fans using ETM direct drive motors in the global market.

    Hengzhengtong and ETM Company of the United States have joined forces to combine ETM's advanced and mature permanent magnet direct drive technology with Hengzhengtong anti-fall wheel hub and wind dynamic blade technology to provide customers with the most advanced, mature and reliable permanent magnet direct drive super large ceiling fan in the industry.
