Secure
Overall safety design of the fan
One of the two core demands of oversized ceiling fans is to use safely!
Safe fans must ensure that components do not break or fall, even in the event of an external impact!

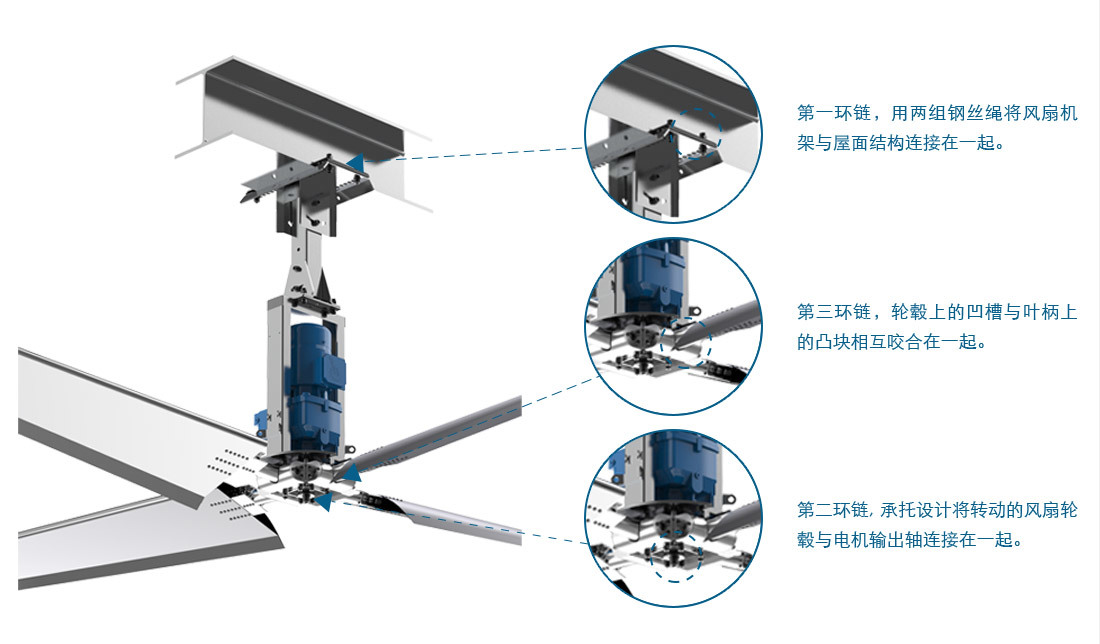

Hengzheng GM's three independent safety chain designs ensure the safety of the use of oversized ceiling fans. It is the industry's safest product.
The experience of the installation and use of oversized ceiling fans in the past has proved that the vast majority of safety accidents are blade falls, and blade falls are mostly caused by the fracture of the connection between the blades and the hub. That is, the security design involving the third ring chain.
Hengzhengtong has designed two unique devices to ensure the connection safety of the third ring chain: the concave and convex bite connection and the collision buffer device.
Based on the above two unique safety devices, only the oversized ceiling fan (Hengtong series) in the industry that Hengzheng Tong promises to operate normally will not cause parts to fall due to external impact
Anti-falling device
|
Safety device description Description on Anti-Falling Device |
Hengtong series HT Series |
Hengkun series HK Series |
Hengyun series HY Series |
Hengxing series HX Series |
Hengxing series HX Series |
| A |
Additional wire rope winding to connect the rack to the roofing structure Extra steel rope wrapping between I beam and the motor frame |
■ |
■ |
■ |
■ |
| B |
Four sturdy wire ropes reduce fan shaking and connect the rack to the roof structure. 4 stabilization ropes connect the frame and ceiling |
■ |
■ |
■ |
■ |
| C |
The stepped transmission key is matched with the bushing fastening nut to prevent the hub and blades from falling the combination of the step driving key with a nut on the shaft sleeve prevent falling of the hub in any case |
■ |
■ |
|
■ |
| D |
Fall arrest hooks (4 pieces) hang the hub/blades in case the blades and hub fall 4 anti-falling hooks to hold the hub in case of the hub falling down |
■ |
■ |
|
|
| And |
Irregularly shaped sliders in 4 groups of sliding holes along the outer edge of the hub limit the range of blade upturning The sliders inserted in the cylinders to limit the range of up & down of the blades |
■ |
■ |
■ |
|
| F |
The rubber sleeve lining the above slider absorbs the energy of the blade when it is hit by an external force and relieves the impact The rubber cushions coated on the sliders can absorb the vibration energy |
■ |
■ |
■ |
|
| G |
The concave and convex design of the petiole and the slider create a self-locking effect, ensuring that the petiole does not fall off the slide The blade handle and the slider are fastened in a self-lock way |
■ |
■ |
■ |
|
Commitment to security
In order to make customers feel at ease when using Hengzhengtong oversized ceiling fans, based on our confidence in our own products, Hengzhengtong is the first and only one in the industry to make a commitment to safe use.
The whole series of Hengzhengtong super large ceiling fans that rotate normally will not cause fan components, especially blades, to fall due to accidental impact of blades and irregular start/stop operations.
If the above accident causes the blades to fall, and causes injury to the personnel under the fan or damage to the equipment property, Hengzhengtong will compensate the customer's personnel and property losses with a maximum limit of RMB 1 million.
Although some peers present the "product liability insurance" issued by the insurance company, its coverage and compensation conditions need to be carefully reviewed! Because in the absence of national manufacturing standards and industry standards for oversized ceiling fans, insurance companies cannot provide a clear directional guarantee for the fall of fan parts! It is also not possible to compensate for such incidents.
